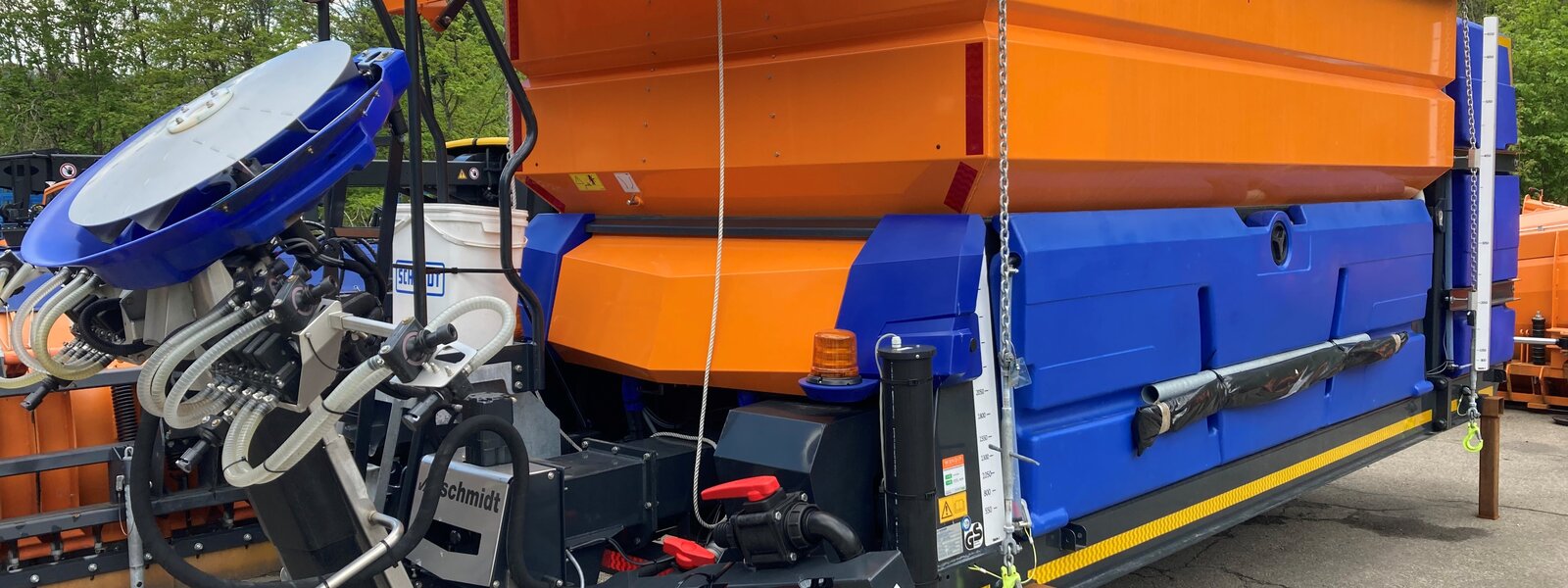

Schmidt | STRATOS S70-36 COMBI
Ex DEMO Spreader S70-36 Combi| Offer number: | UM3434936 |
| Brand | Schmidt |
| Material number: | 1323021-0 |
| Year of manufacture: | 2020 |
| Serial number: | S3S11254 |
| Utilization (h): | 5 h |
| Classification: | Class 5 |
| Color: | deep orange |
| Location: | Germany
79837 St. Blasien |
| Availability: | 11 Dec 2023 |
| Price: | On request |
Machine details
Stratos spreader are compatible with most carrier vehicles. The intuitive operation and outstanding performance of the Stratos guarantees an intelligent and efficient winter maintenance operation.
Equipment
| Basic machine |
|---|
| SSR | STRATOS S 70 (36) Combi Soliq WSP "FLEX high" |
|---|
| folded 7m3 container, 6580 liter tank |
|---|
| unfolded: 5.3 m3 container, 7300 liter tank |
|---|
| Required loading length | 6.70m. |
|---|
| Spreader body length | 5100mm. |
|---|
| Curb weight | 3085 kg. |
|---|
| Center of gravity | circa 1064 from the front of the funnel |
|---|
| Center of gravity | approximately 1020 from the front of the funnel |
|---|
| Platform height fully loaded | 1470mm |
|---|
| Container assemblies |
|---|
| 163678 | Screw conveyor ("S") |
|---|
| 175636 | Protective grille 40x40 mm, steel (series for "Flex" Combi) |
|---|
| 753348 | Folding roof professional, steel (for "Flex" Combi) |
|---|
| 707146 | Container in orange RAL2011 (series) |
|---|
| 840392 | Rear cover stainless steel |
|---|
| 889378 | Contour marking according to UN ECE R48 guideline |
|---|
| Wet salt modules |
|---|
| 378527 | Front tank with 2500 l and 2 side tanks with a total of 1850 l, a total of 4350 l |
|---|
| 198159 | Wet salt system according to EN15597-1 2009 Min. and Max. level and scale |
|---|
| 890156 | Wet salt coupling Storz 3" |
|---|
| 388150 | Float switch maximum level, 4-pole (part of EN set) |
|---|
| 536469 | Float switch minimum level (part of EN set) |
|---|
| Automatic water pump switch-off when running dry- Yes |
|---|
| Max volume wet 8400l |
|---|
| Drive |
|---|
| 632887 | Drive via vehicle hydraulics ("V") |
|---|
| 277835 | Connections at the front of the device (for V) |
|---|
| 678326 | Quantity recording for load sensing pump (for V) |
|---|
| 619528 | Hydraulic couplings leak-free ISO16028, P=Gr.2(M) R=Gr.3(M) |
|---|
| 920050 | Mini measuring connection on the valve block, without pressure gauge |
|---|
| Steering |
|---|
| 270408 | Evolution Smart "ES" control system, with color touchscreen |
|---|
| 673710 | Combi "Percentage Control" Liquid is always a percentage of the total dosage amount |
|---|
| 515636 | RS232/plow signal interface (with 19-pin EP/ES control panel cable) |
|---|
| 271071 | ThermoLogic (for ES) mounted at the rear of the device | Operating System Units of Measurement International Metric | Language of the control panel German | Language of the control panel German | RS232 protocol EN 15430-1 protocol | Direct plow signal Yes |
|---|
| Distribution system |
|---|
| 721699 | Spreading plate "660" (spreading width 3 - 12 m) |
|---|
| 920051 | Spray width adjustable per 1/4 lane |
|---|
| 143517 | Optical scatter control |
|---|
| 888437 | Spread control via headlights in red (bulb) or white (halogen, only 24 volts) |
|---|
| Spreading width | CS-General width= 3-12m. Auger only WSP=0.9-12m 660mm |
|---|
| Diffuse | control via headlights White |
|---|
| Storage and fastening parts |
|---|
| 119936 | Base frame for storage feet for setting down up to 12 t. or solid structure |
|---|
| 952336 | Storage feet (4 pcs.) 12 tons, hydr. operated, including side supports |
|---|
| Special equipment |
|---|
| 830120 | Rotating beacon with LED lamp (2 pieces) |
|---|
| 407687 | Tail light |
|---|
| 153795 | Warning foil red and white, at the top of the container |
|---|
| 781199 | Marking "Winter Service" (German) |
|---|
| 756782 | Splash guard 2,200 mm |
|---|
| Customer special equipment |
|---|
| XPST4064 | Tail light with indicators, brake light and reflector (2 pieces) |
|---|
| XPST4206 | folding wind spotlight |
|---|
| XPST4368 | Flex adjustment with 7m³ salt and 2x 1,320 liter flex bags at the back of the container |
|---|
| XPST4368 | Adaptation Flex Combi 36 version frame + container |
|---|
| XPST4368 | Lockable front tank so that only side tanks and flex bags are filled when a front plow is driving |
|---|
| XPST4368 | Electronic fill level display of the brine tanks in the control panel. |
|---|
| Other options |
|---|
| Length of spreader plate suspension with loaded spreader |
|---|
| Practical 1240-1750(490) and 1270-1750(660) or 1180-1450(Integral) |
|---|
| Language of operating instructions German |
|---|
| Speed measurement Electronically from the speedometer |
|---|
| Vehicle voltage 24 volts |
|---|
| Vehicle connector 15-pin ABS connector ISO 12098 |
|---|
| Loaded dump height 1470 mm |
|---|
| s.G. Solid material 1.20 |
|---|
| s.G. Liquid material 1.15 |
|---|
| Mass empty 2944 kg. |
|---|
| Mass full 13946 kg. |
|---|
| Center of gravity full (S.G.-solid/S.G.-liquid) | from the front of the container 1064 mm. | from loading area 1020 mm. |
|---|
