Aebi ｜Slope tractor｜TT 206⁺ / TT 211⁺

Stepless travel drive

The travel speed is continuously variable and can be controlled either via the travel lever or the foot pedal. The hydrostatic travel drive creates a permanent frictional connection between the engine and the wheels, allowing the vehicle to be maneuvered safely and precisely - even on extreme slopes.

Terrain adaptation

The front axle can twist relative to the rear axle. This twisting enables precise adaptation of the attachments to the terrain.

Balanced weight distribution

Both Terratrac models distribute their weight evenly over all wheels. This increases slope capability, protects the soil and reduces tire wear.

Four steering modes

At the touch of a button, you can switch between front (a), rear (b), all-wheel (c) and crab steering (d) while driving. From 15 mph driving speed, the Terratrac automatically switches to front steering.

Axle differential lock

The chassis features front, rear and longitudinal differential locks as standard. All axle locks are individually switchable at the push of a button.

Front and rear linkage

The category I front linkage has a lifting capacity of 2,866 lb and a standard side shift of up to 15.7 in. The catch hook is positioned close to the vehicle, which means that the attachment is guided close to the front axle and adapts optimally to the terrain. The rear linkage complies with categories I & II and has a lifting capacity of 2,646 lb. When coupling or uncoupling the attachments, the "Lift" and "Lower" linkage functions inside the cabin or a freely selectable control unit for the operation outside the cabin can be used.

Relief hydraulics

The relief hydraulics allow the attachment to glide over the ground with freely adjustable contact pressure. Together with the laterally oscillating implement suspension, this results in precise adaptation to the course of the terrain and guarantees clean work results.

Vibration absorption

The Terratrac's front hydraulics and optional rear hydraulics compensate for vibrations from the attached implements and absorb shocks. This enables faster shifting movements, improves driving safety, increases driving comfort and protects the machine.

Automated workflows

The linkage function combines recurring work steps in an automated sequence. As an example, when mowing, after raising the mower at the front (a), the machine can automatically engage four-wheel steering for the turn and raise the conditioner at the rear (b). If the operator lowers the front linkage again, (c) the front steering activates again and the rear implement lowers (d). The linkages are freely programmable, either simultaneously or with a delay, and save a lot of time during maneuvering.

Cockpit

The modern cockpit impresses with plenty of space and an ergonomic arrangement of the controls. Holders for the cell phone and a drinking bottle up to 0.4 gal are within easy reach for the driver. For even more comfort in the panoramic cab, heating, dust filter and air conditioning are optionally available.

Operating concept

The operator's left hand steers the vehicle, while the right hand controls the direction of travel, speed and linkage functions via the travel lever. The display instrument with color display always informs the driver about all important data. The intuitive operating concept of Aebi vehicles is applied across all products and remains the most innovative system on the market.

Comfort seat and swivel mechanism

For even greater driving comfort, the seat can be supplemented with air suspension. The optional swivel device allows the driver to sit upright in steep shift line drives.

Reversible fan

The large radiator is easily accessible and can be folded back for cleaning. The standard reversible fan changes the direction of rotation automatically and at intervals during operation.

LED lighting

LED lighting for brightest illumination of the working fields and good visibility in road traffic.

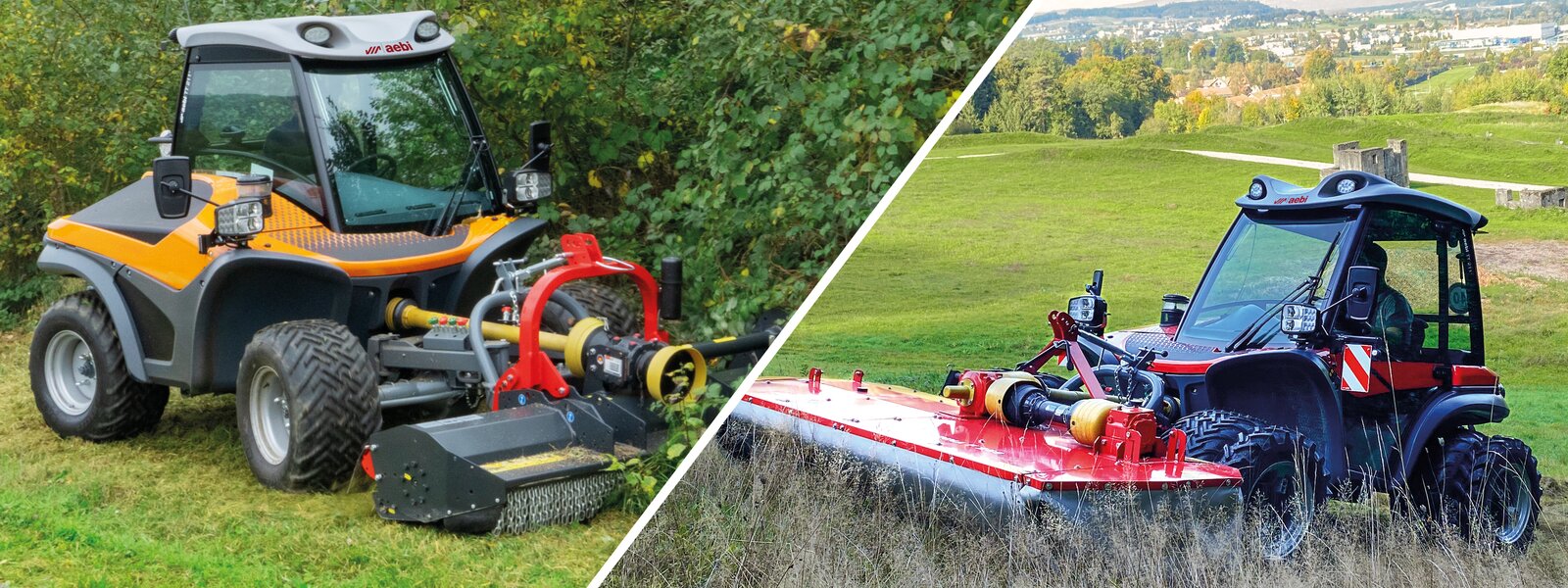

In agricultural applications, the TT 206⁺ / TT 211⁺ is a convincing choice for:

• Mowing
• Forage harvesting
• Litter harvesting in wet areas
• Pasture care
• Fertilizing

In municipal technology, the Terratrac shows its strengths to the full in the following work and areas of application:

• Maintenance of embankments and dams
• Management of parks and green areas
• Mowing in wet areas and nature reserves

As a year-round implement carrier, the TT 206+/ TT 211+ can also be used in the cold season with:

• Snow plow
• Snow blower
• Spreader
• Brine sprayer

The basic equipment of the tires is adjusted to the future operating terrain. This gives each machine excellent traction and the best safety on slopes. These properties can be further improved with the dual tires. The dual tires can be mounted easily and conveniently thanks to quick-release fasteners.

Ground protection

The wide low-pressure tires and additional dual tires that can be mounted at the front and rear provide a large contact area. Together with the low dead weight of the Terratrac, this results in very low ground pressure. This protects the turf and results in virtually no soil compaction.

Base tires | Dual tires | Turf tires
