Schmidt ｜Snow plough｜SNK

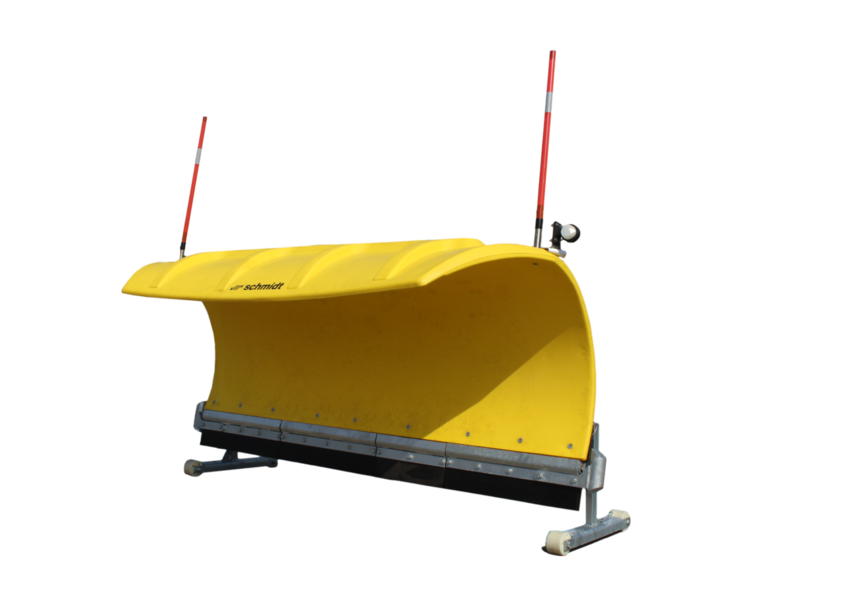

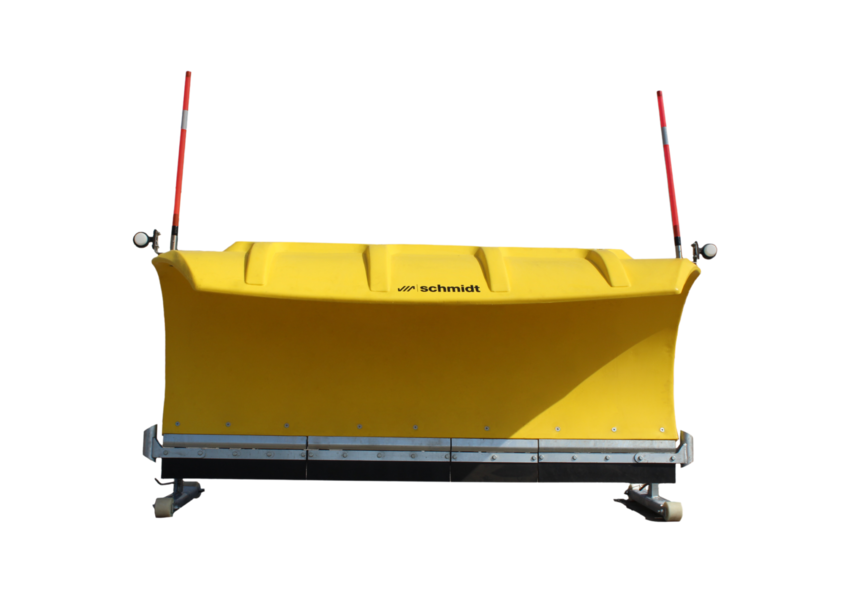

The blade has a box design with connecting slots, making it both robust and flexible. The compact, self-supporting blade is cushioned against vibration in a diagonally-braced steel frame.This makes it a lightweight but stable snow plough. The self-contained blade form, which was specifically developed for wet snow clearance, eliminates the need for an additional snow deflector.

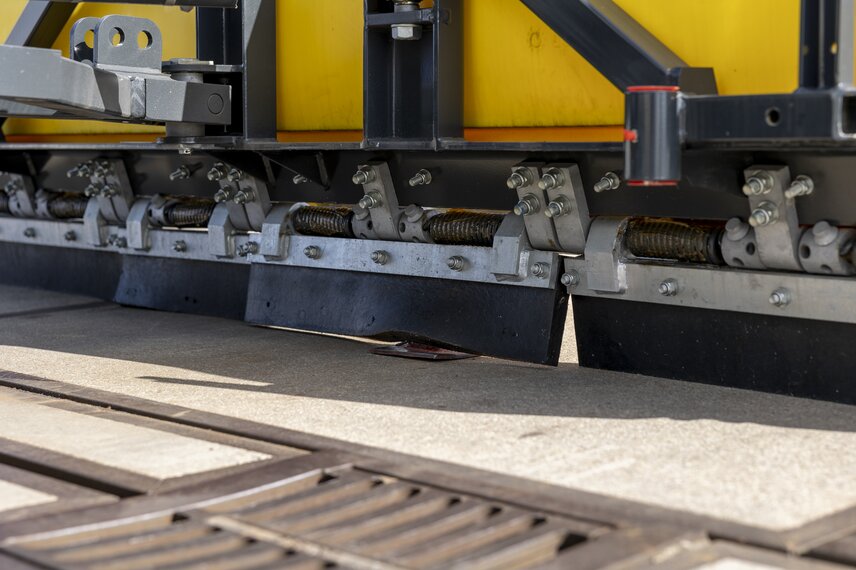

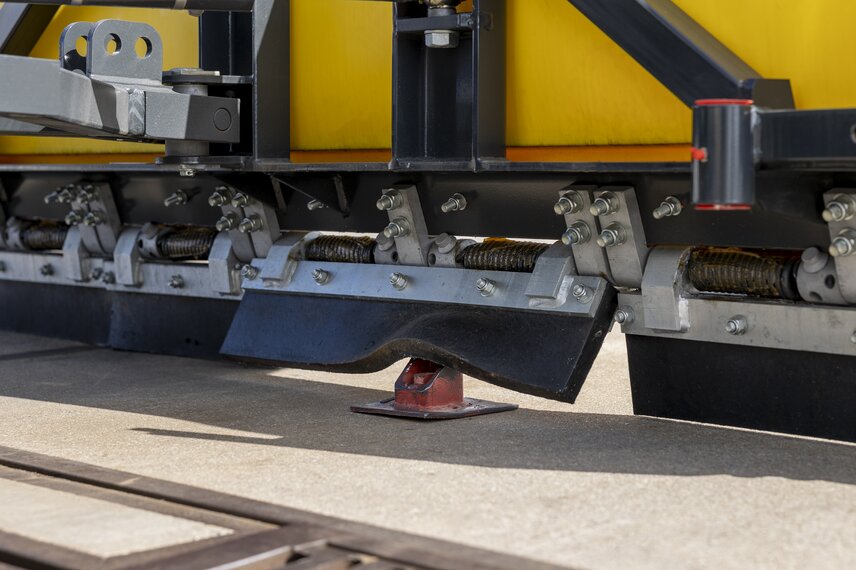

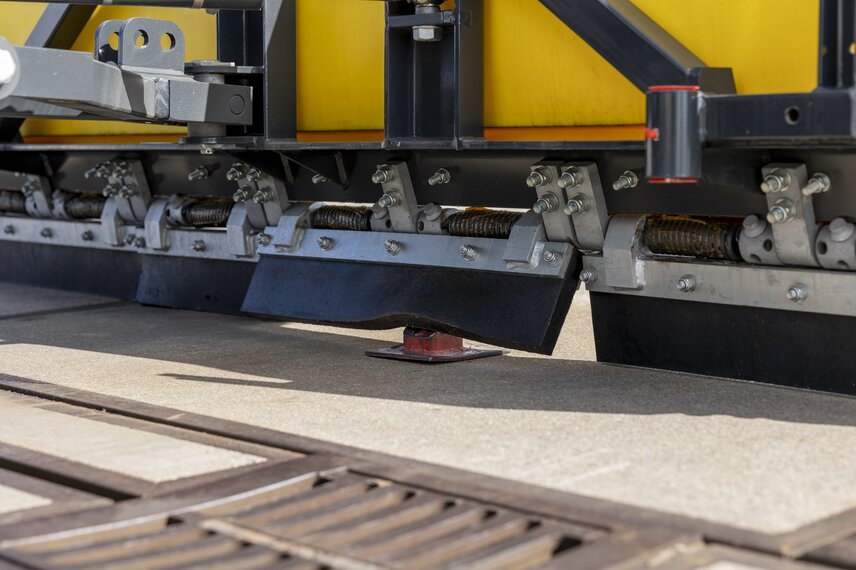

Sizes up to the SNK 24 use a telescopic arm and retaining spring to help prevent damage when encountering obstacles. Sizes of the SNK 27 and above have spring-loaded segments with torsion springs. Depending on the particular cutting edges there are two override security systems: the spring-loaded segments with torsion springs and the shock absorber rails. The height-adjustable castor wheels prevent the plough from digging into the snow.

Steel cutting edge (S)

A multi-purpose, cost optimised solution for aggressive clearing of hard and/or compact snow. Steel cutting edges are resistant to bending and twisting, giving a clean result.

Combi cutting edge size 36 (C36 / C50)

A more durable cutting edge made of steel, rubber and ceramic. This cutting edge is meant for aggressive snow clearing and can be a good alternative if the steel cutting edge is wearing out too fast. The combination of materials ensures noise and vibration reduction.

Rubber cutting edge (size 30 mm and 50 mm) (R)

Due to the flexible and elastic characteristics of rubber, it glides smoothly over the surface. A rubber cutting edge is especially efficient when clearing snow slush.

GK 7 cutting edge (GK 7)

A GK cutting edge allows for more efficient snow slush clearing with longer service life and less friction. This cutting edge is made of steel, rubber and corundum and is therefore more aggressive than a rubber cutting edge.

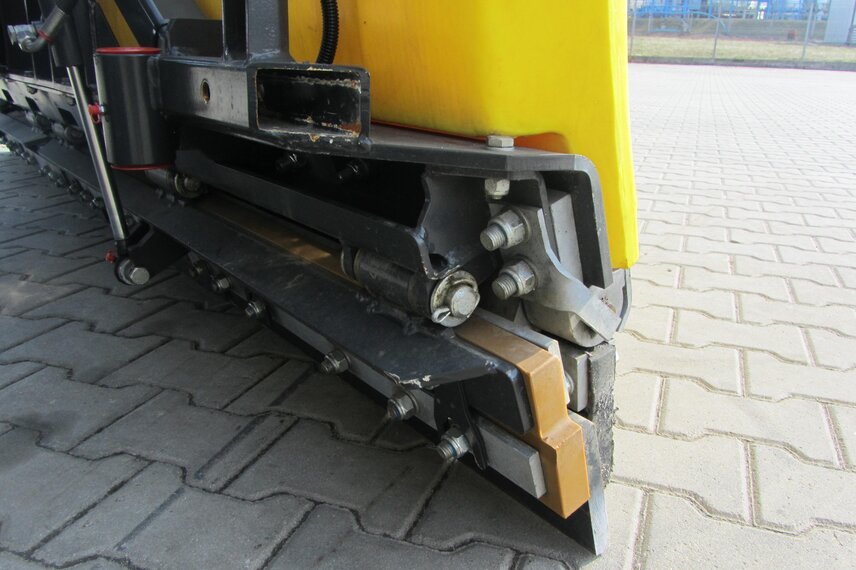

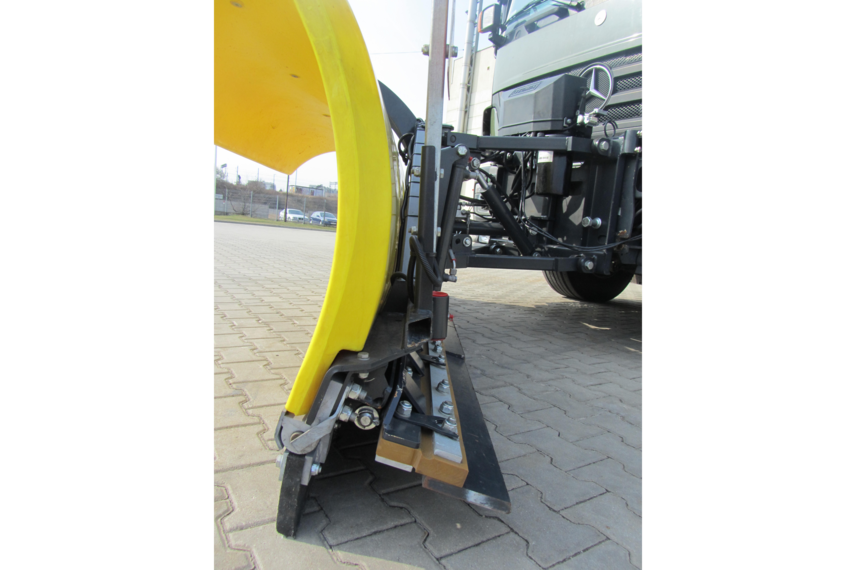

The innovative TwinEdge blade is available on special service request for SNK ploughs 27.2-34.2 and features a combination of rubber or GK7 cutting edge with a steel cutting edge. The steel cutting edge can be hydraulically lowered, making it easier to clear hard-packed snow and is cushioned against impacts and vibration by a polyurethane stop and polyurethane bushings.

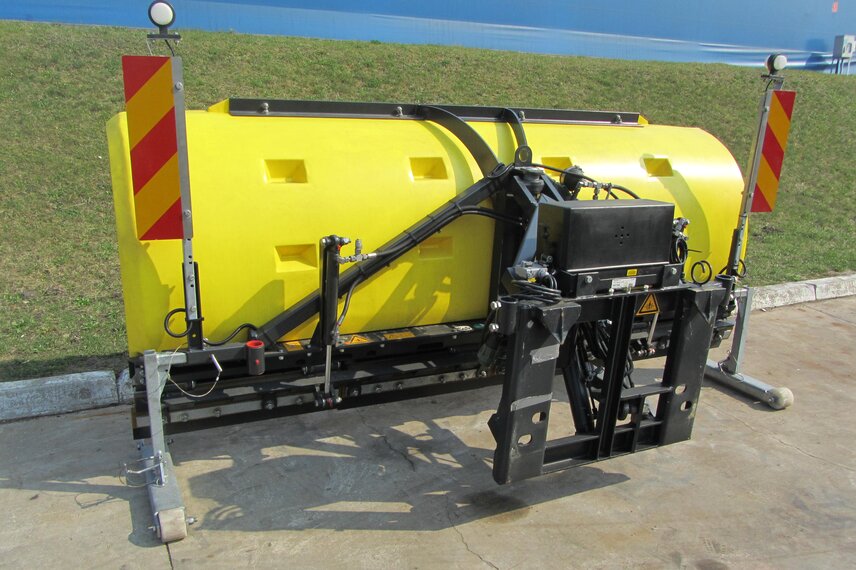

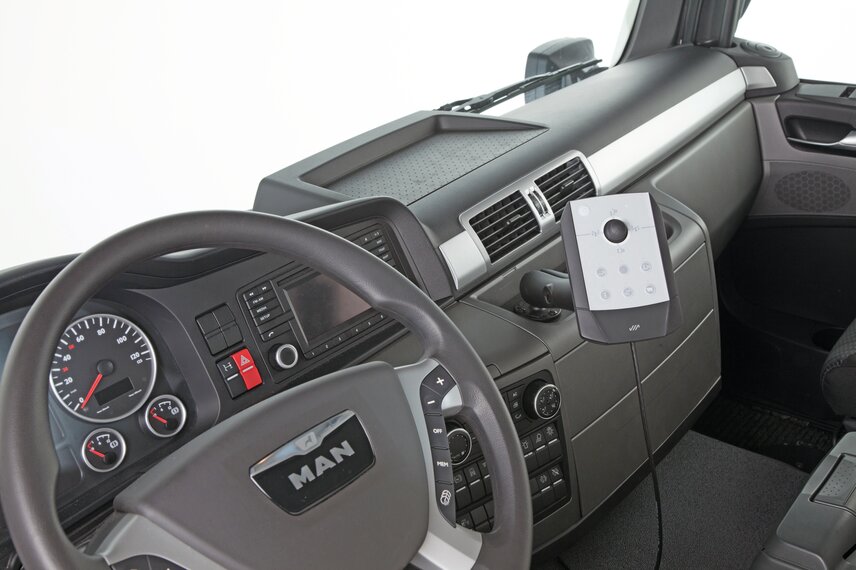

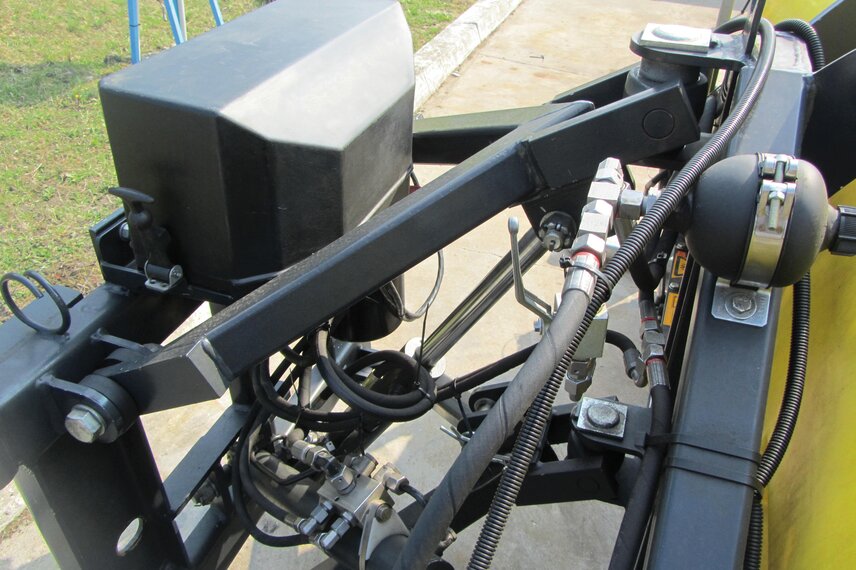

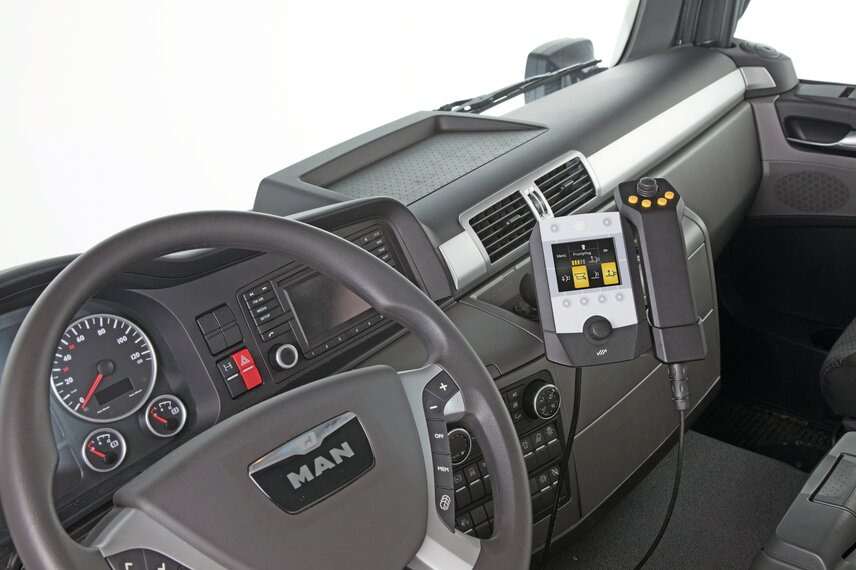

The SNK can be mounted either on vehicles with their own lift, or on vehicles with an SNK mounting system with the plough’s own hitch or DIN mounting plate. All functions including lifting, lowering and swivelling are carried out hydraulically. The vehicle's hydraulics or, as an option, a compact electro-hydraulic system on the mounting plate can be used. The operation of this system merely requires a power supply point at the vehicle. This model is conveniently controlled using an EP or ES control panel in the cab.

Castor wheels extend the service life of the cutting edges and allow obstacles to be driven over more smoothly. We offer the following castor wheels for the SNK ploughs:

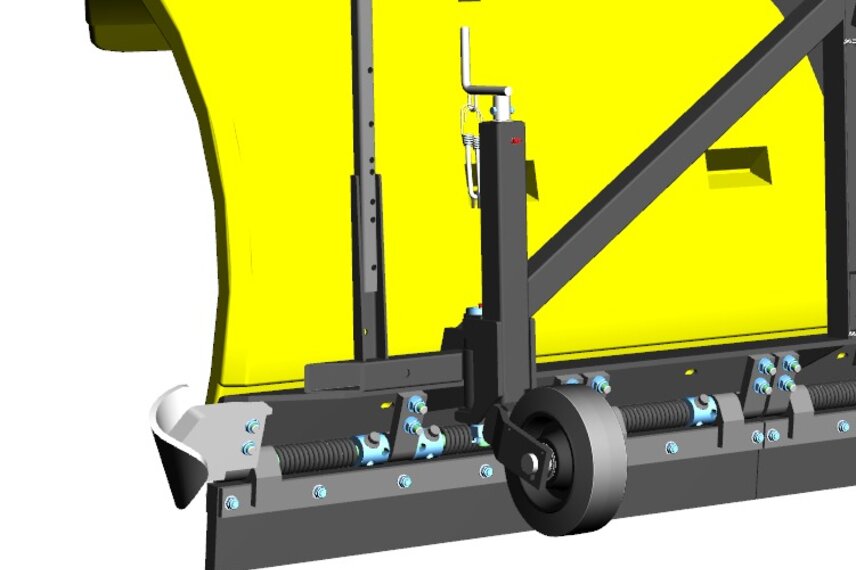

1. Castor wheels SNK with adjusting handle.

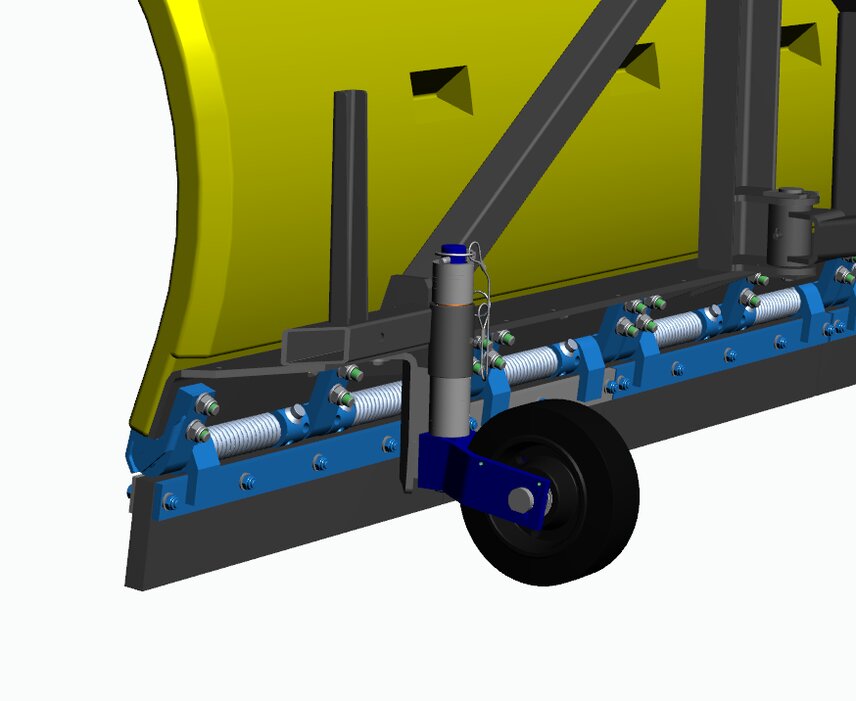

2. Castor wheels SNK with adjusting washers.

The SNK snow plough series can be mounted on vehicles with their own lifting system, using appropriate adaptors. Alternatively, they can be mounted on vehicles with the SNK mounting system by means of their own lifting device or DIN plate. A very short attachment is also possible with the special implement plate for tractors.

• LED Lighting mounted directly on a plough share or on the holders
• LED Additional headlight, Additional headlight with indicator
• Lumifog
• Marking rods
• Parking trolley with wheels
